Garmin LiveScope 2 Transducer

Garmin LiveScope 2 Transducer
$1,999.99
Brand Garmin Item 010-03899-10
Brand
Garmin
Item Number
010-03899-10
UPC
75375936909

You’ve never seen live-scanning sonar of this clarity reach this far. LiveScope 2 offers increased resolution, integrated image stabilization and improved stitching, so you’ll clearly see fish and structure.

Included

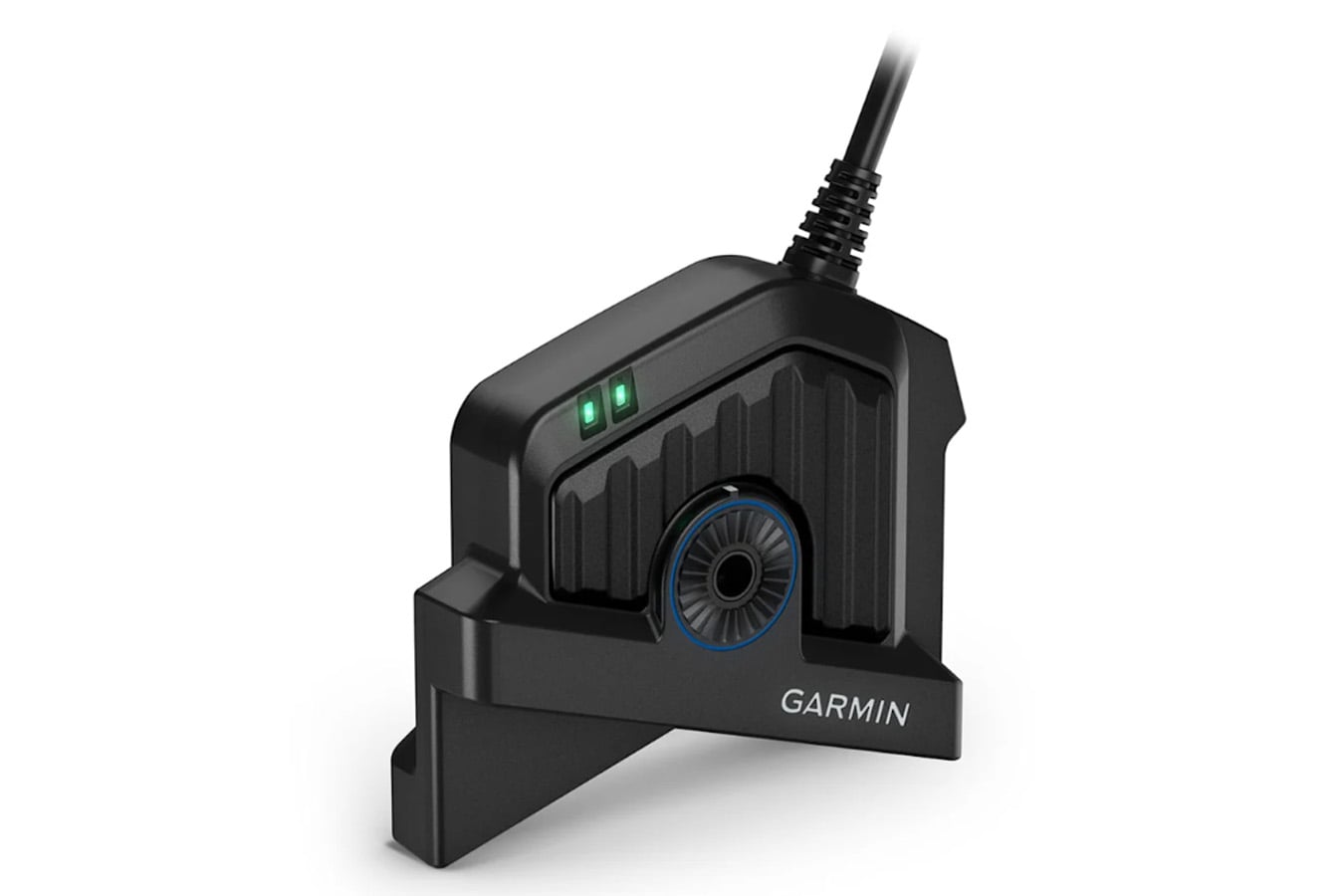

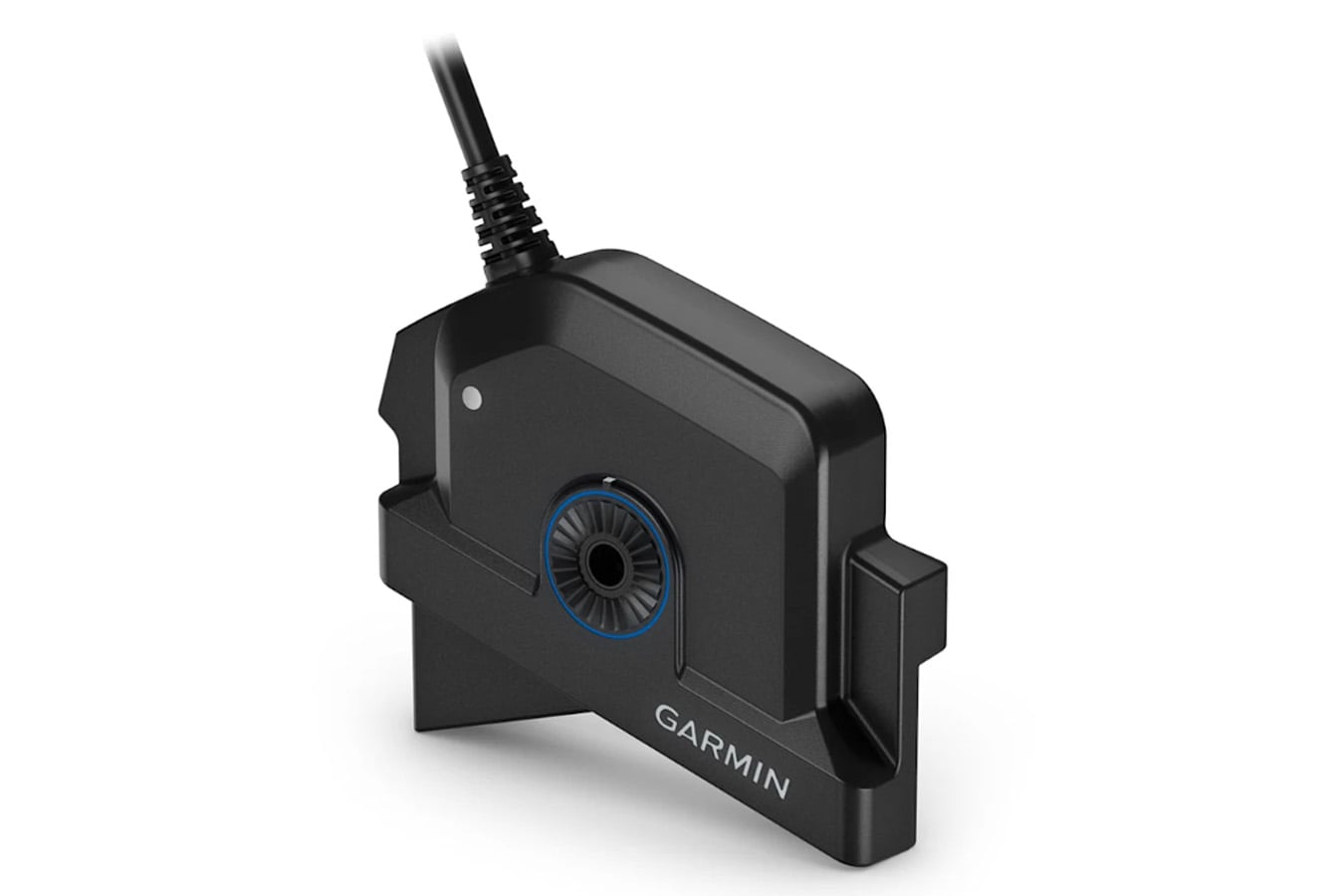

  • LiveScope 2 LVS44 transducer

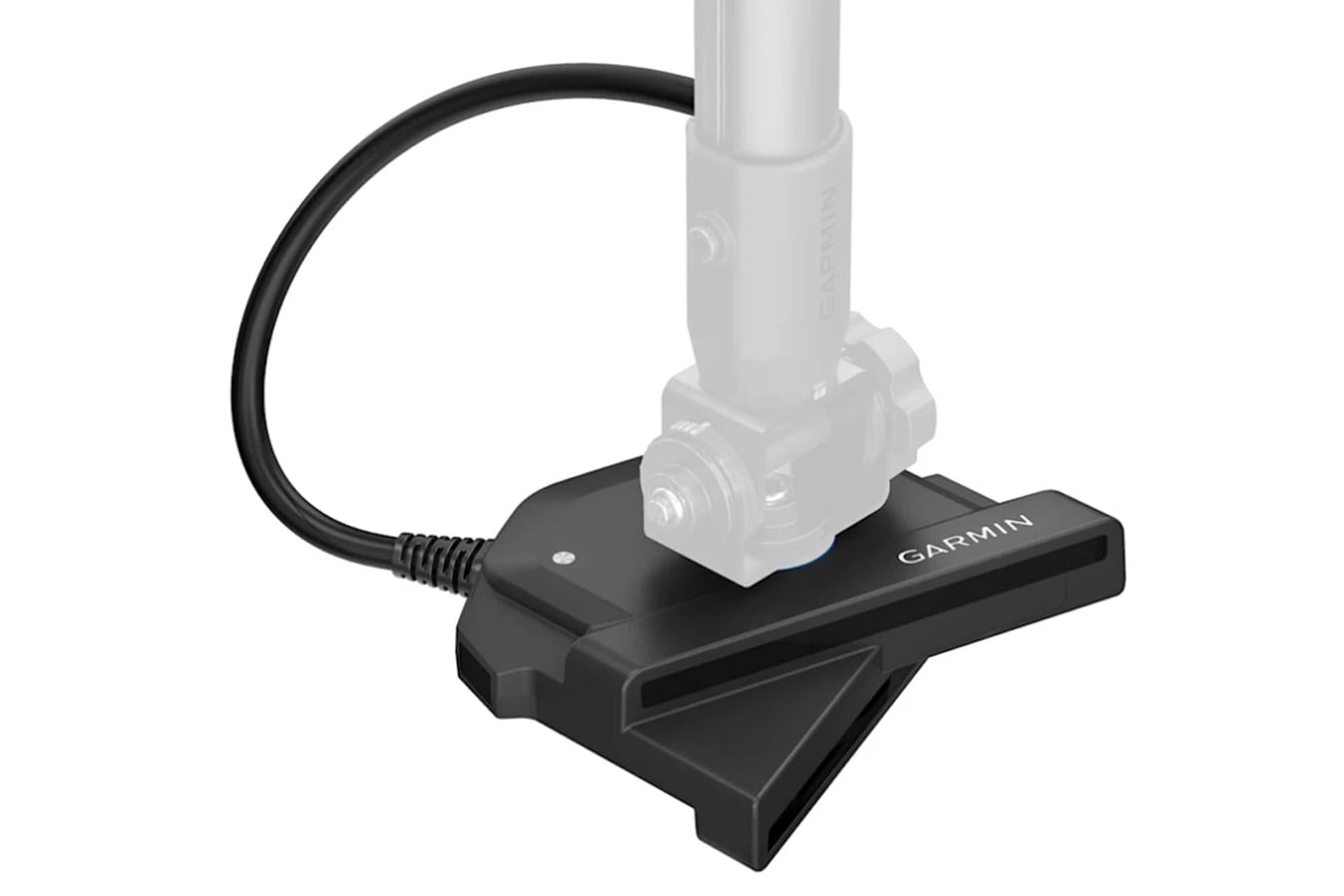

  • Adjustable perspective shaft mount for LiveScope 2 transducers

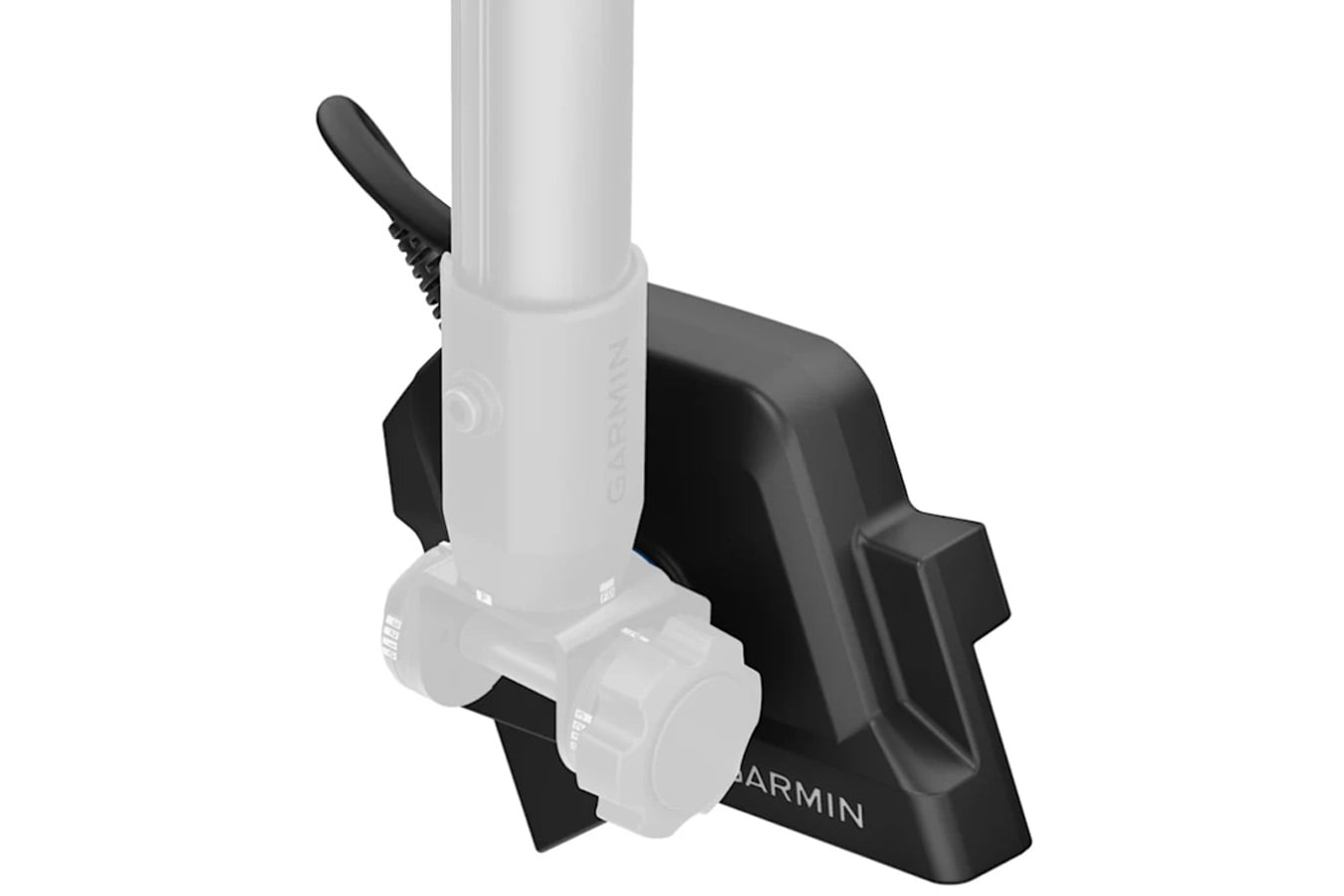

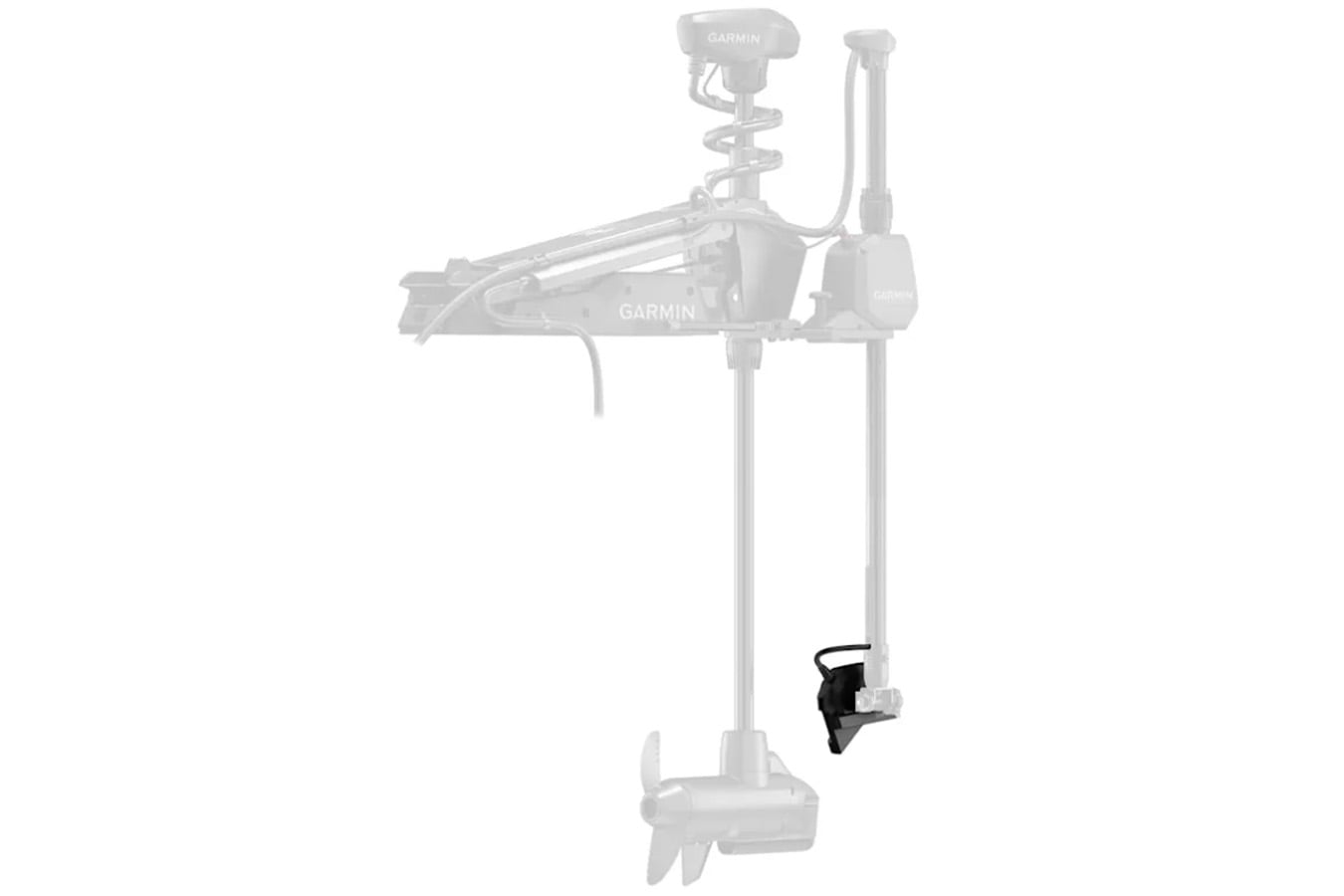

  • Trolling motor barrel mount
  • Power/network cable with adapter
  • Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
  • Hardware
  • Documentation
  • See Clearer: See fish and lures in real time at an improved range with up to 20% higher resolution, reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 250' in freshwater.
  • No Black Box: The LiveScope 2 transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.
  • Fast Processing: Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.
  • Integrated Sensors: Water detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.
  • Improved Coverage: Wider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.
  • Vivid Color Palettes: When LiveScope 2 is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.
  • Onevu Sonar: Combine LiveScope 2 with GT360UHD to overlay your live sonar onto the 360-degree image for an all-new 3D view.
  • Forward Mode: Scout ahead of your boat to see what’s happening in real time with more coverage.
  • Down Mode: Explore a wider live view of the activity directly beneath your boat.
  • Perspective Mode: Get an overhead wider-angle perspective of what’s below and around your boat.
  • Transducer beamwidth Forward: 20° x 165°
  • Down, Perspective: 20° x 180°
  • Transducer cable length: 5.5 m (18 ft)
  • Transducer number of pins: 7
  • Dimension: 6.3” x 5.6” x 1.9” (16.0 x 14.2 x 4.8 cm)
  • Weight: 3.93 lbs (1.790 kg)
  • Temperature range Operating: 0 C to 40 C
  • Power input: 10-35 V
  • Power usage: 32 W max
  • Fuse: 7.5 A
  • Compass-safe distance: 4"
  • Frequenc:y 600 kHz-1050 kHz
  • Transmit powe: 392 W
  • Maximum depth Down and Forward: 250’
  • Sonar Type: Live
  • Target Separation @ 100': 12.6"
  • Target separation @ 30': 5.7"
  • Perspective Mode Mount Included: yes (adjustable angles)
  • Garmin Marine Network Ports: 1 BlueNet (small connector) with GMN1 Adapter
  • Power connection: yes (2-wire)
